Löwenstein Prisma20A APAP CPAP sleep apnea therapy device with touchscreen controls – Special package 2 (incl. heated humidifier & heated tube)

€935,00
Provider Löwenstein Medical SE & Co. KG

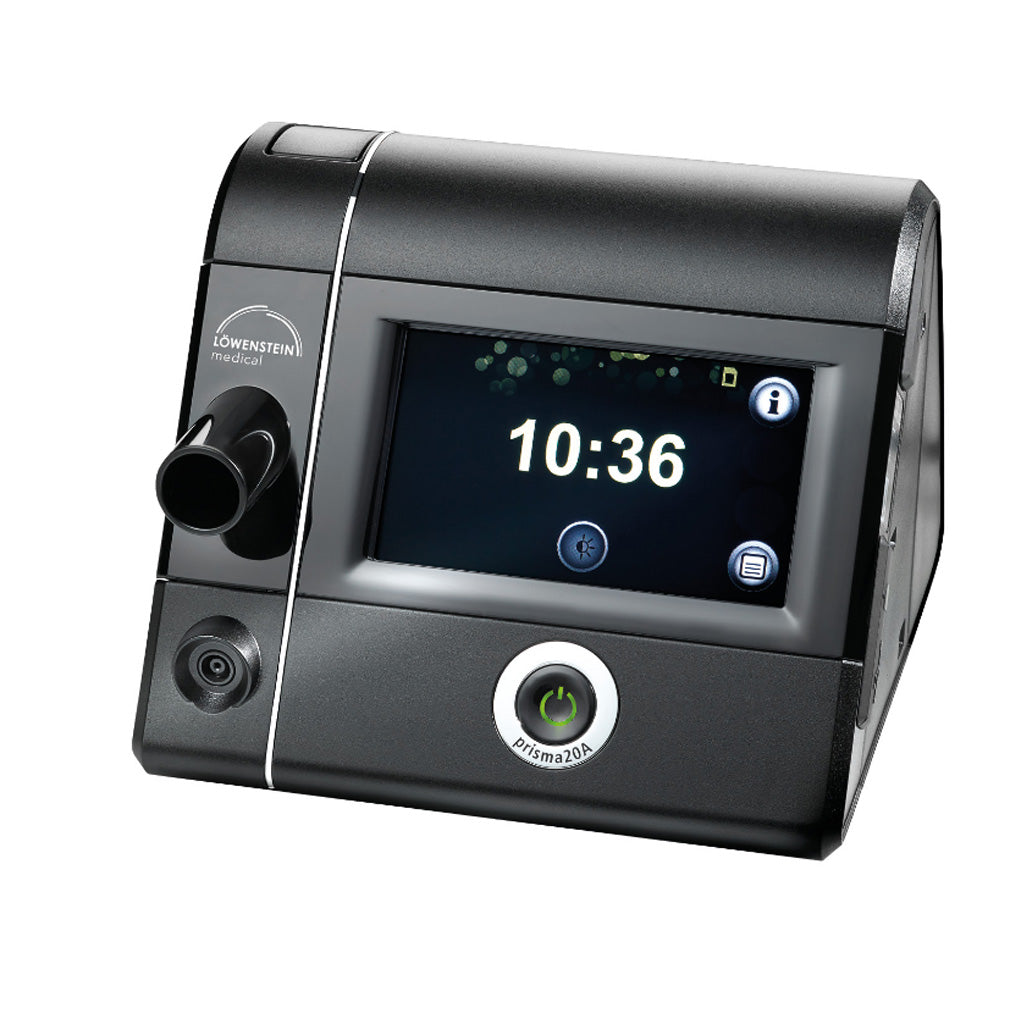

Prisma20A by Löwenstein for variable pressure requirements

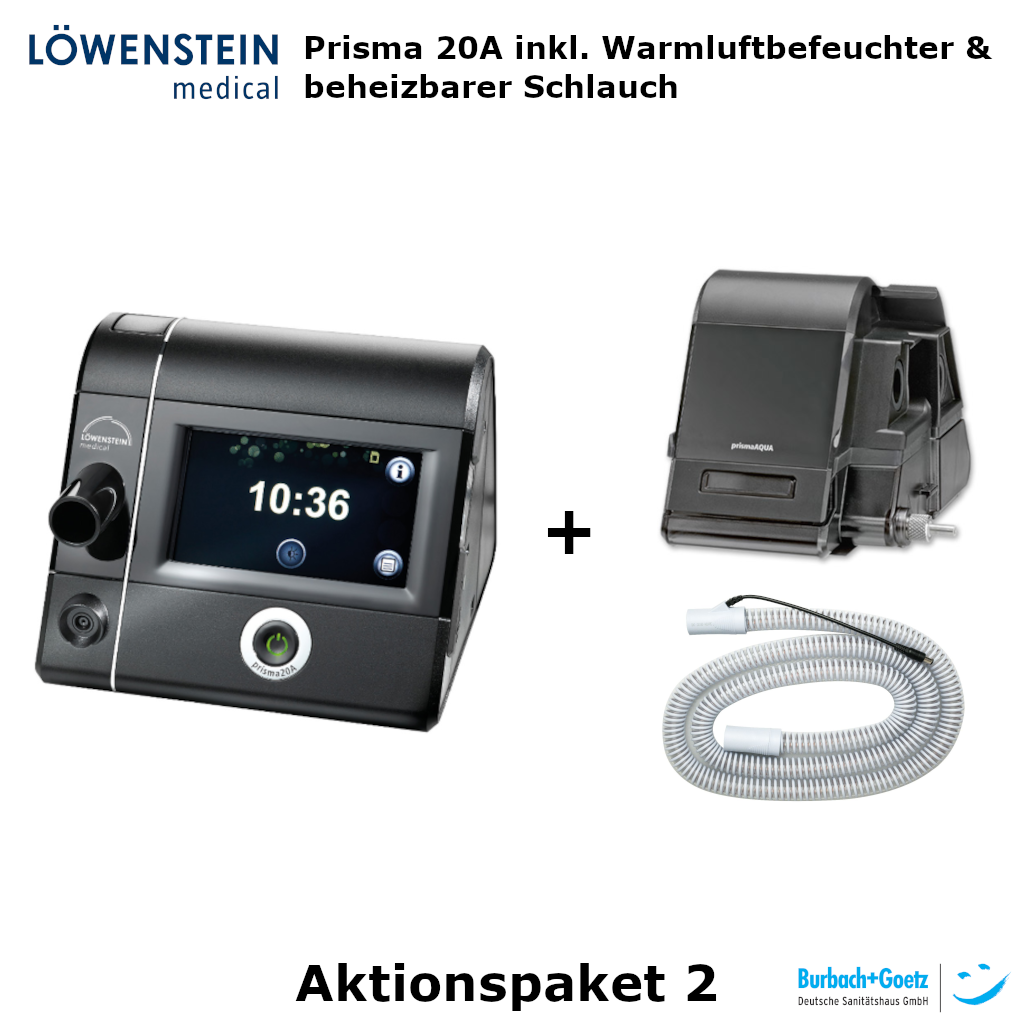

Promotional Package 2

CPAP-APAP therapy with softPAP and FOT

  • Therapy: With an improved oscillatory pressure signal (FOT) for accurately differentiating between central and obstructive apneas, now with an even more comfortable breathing sensation
  • Precise: Identification of RERAs, snoring, hypopneas, and flow limitations
  • Reliable: Continuous mask fit check and automatic mask detection
  • Excellent breathing comfort: CPAP and APAP mode with softPAP exhalation relief, now additionally providing inspiratory support at low pressures (softPAP 3)
  • High compliance: Thanks to comfort functions such as softSTART, autoSTART-STOP, and continuous mask and therapy feedback
  • CPAP-APAP therapy device for treating patients with obstructive sleep apnea who require variable pressure (the therapy pressure automatically adjusts to the patient’s pressure requirements during the night)
  • Pressure setting from 4–20 mbar
  • Only 1.4 kg in weight
  • Color screen
  • Easy to operate
  • Particularly quiet



The benefits of the Löwenstein Prisma 20A

  • Maximum user-friendliness for the most efficient operation ever
  • Intuitive touchscreen operation eliminates numerous buttons and provides intelligent, user-oriented navigation. This helps patients gain confidence in their new therapy device from the very beginning. Experts also benefit from the intuitive operating concept, whose primary goal is to make their work processes as efficient as possible.
    A suitable menu for everyone: Easy to understand and informative
  • Different menus for patients and experts ensure that only the information relevant to the current process is displayed on the respective user interface. The result: More space for information and less room for operating errors. prisma20A provides maximum breathing comfort with softPAP exhalation relief. Thanks to slight pressure increases during inhalation and pressure reduction during exhalation, it ensures a comfortable breathing sensation.
  • Intuitive navigation and adjustment of therapy parameters – like all device variants in the prismaLINE range, prisma20A also offers fast operation thanks to the perfect combination of a modern touchscreen and smart user interface. Intuitive navigation and adjustment of therapy parameters – like all device variants in the prismaLINE range, prisma20A also offers fast operation thanks to the perfect.
  • prisma20A reliably differentiates between obstructive and central apneas using forced oscillation technique (FOT). In response to the events, prisma20A automatically adjusts the pressure continuously and precisely to the patient’s needs, supporting highly effective therapy. By allowing the two modes, CPAP and APAP, to be combined with comfortable softPAP exhalation relief, prisma20A also offers a high degree of therapy flexibility – APAP therapy made in Germany.

Scope of delivery

  •  prisma20A basic device (WM 29605)
  •  prisma HYPERNITE heated tube:
  •  prismaAqua heated humidifier
  •  prismaBAG basic, carrying case (WM 29659)
  •  Breathing tube, 22 mm (WM 24445)
  •  Power supply (WM 29657)
  •  Power cord (WM 24133)
  •  Set of 2 air filters (WM 29928)
  •  SD card (WM 29794)
  •  SD card mailing pouch (WM 29779)

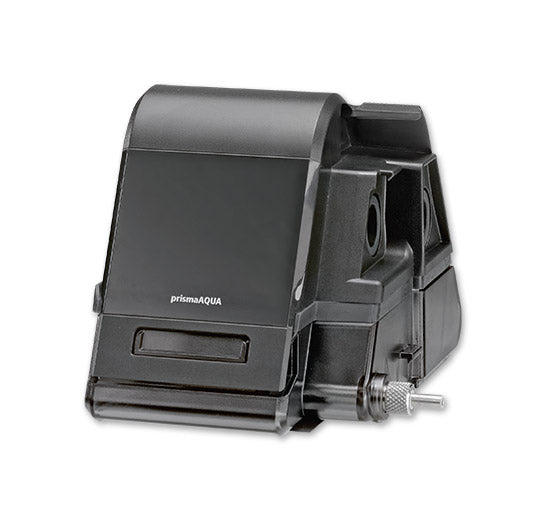

PrismaAQUA heated humidifier:

Löwenstein Prisma Aqua heated humidifier

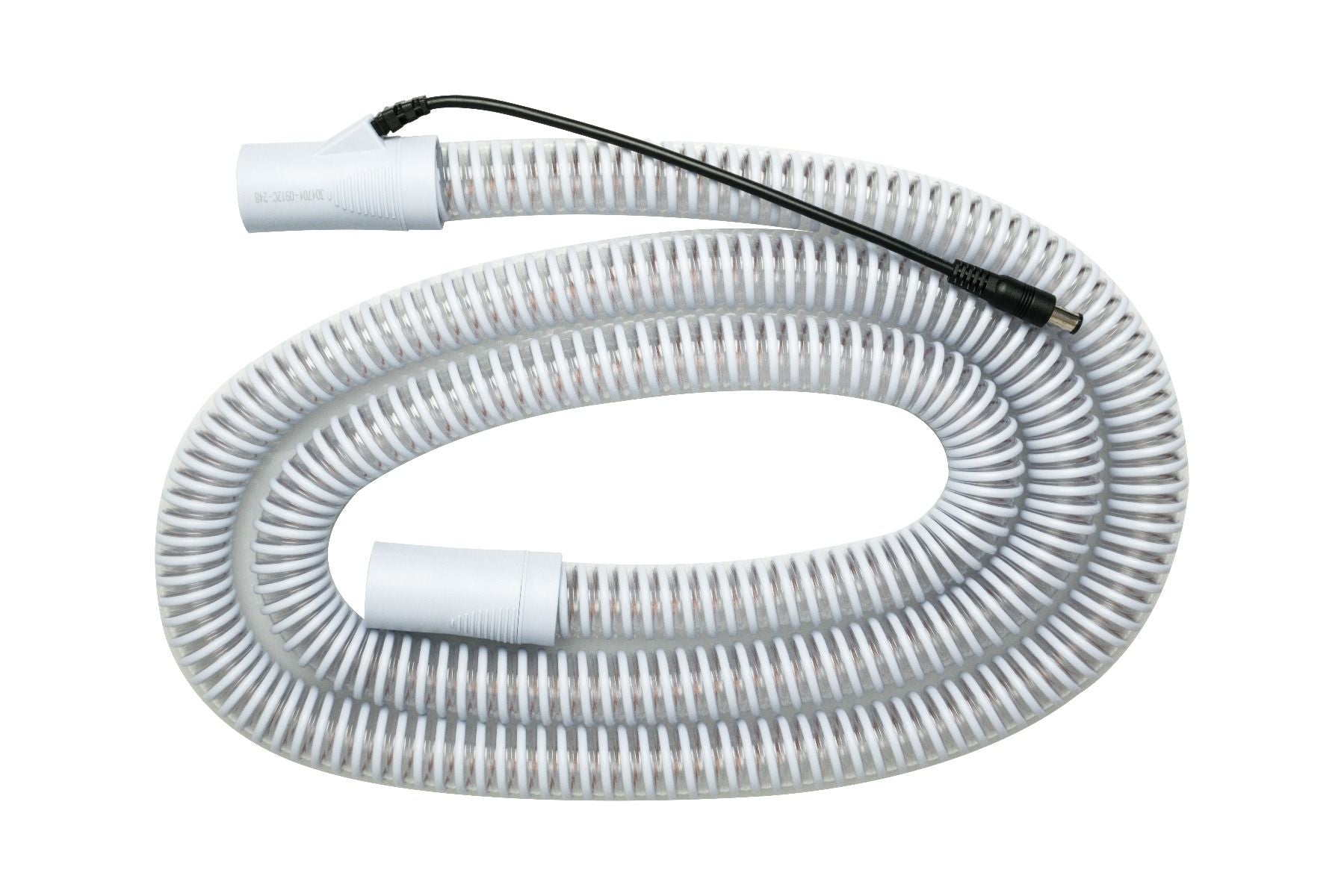

Prisma HYPERNITE heated tube:

Prisma Hybernite heated breathing tube for Prisma CPAP devices


The WM 100 TD devices are pressure-controlled, non-invasive, non-life-supporting therapy devices for treating sleep-related breathing disorders (SRBD) using a mask. The devices are intended for people weighing 30 kg or more. CPAP mode can be used by people aged 3 years and older. The device may only be used as directed by a physician.

The WM 100 T D devices are used in clinical facilities and at home. At home, the devices may also be taken on trips.

Please read these PRISMALINE 20A operating instructions carefully before use and follow the manufacturer’s instructions. Subject to change without notice. Images may differ from the original.
